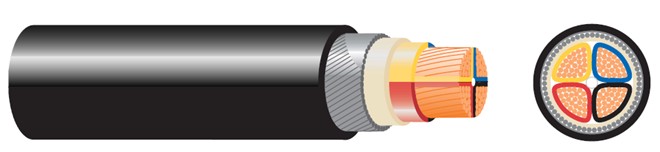

Rated Voltage (kV): (0.6/1)
Cables sizes (mm2): From 1.5, 2.5, 4, etc. up to 630mm2. (Applicable cable sizes shall be verified based on cable construction)
Cable Construction: Cu/Al, Single or multi core. Power & Control cables with XLPE or PVC Insulation, screen option, unarmored or armored.
- Copper/Aluminum Conductor as required.
- PVC or XLPE insulations as required.
- Lead sheath as required.
- PVC, PE or LSHF/LSZH outer sheath available on request.

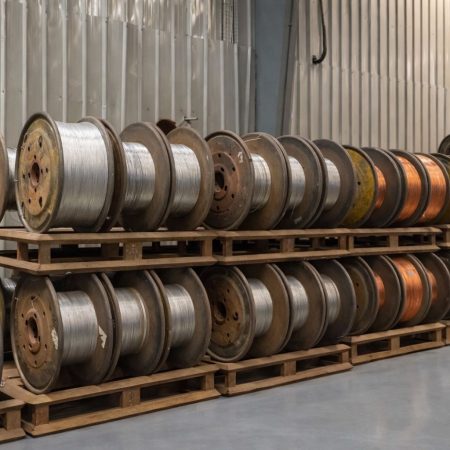

- The cables shall be supplied in lengths on wooden/steel drums.
Applicable International Standard Specification: IEC 60502, BS 6346 & BS 5467. Also, SC can supply a range of alternative designs to meet more specifications & customer needs.

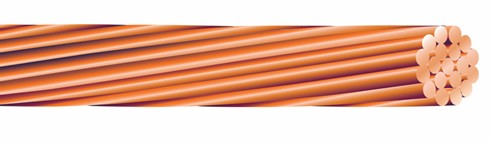

- Available bare sizes (mm2): 0.75 up to 630mm2.
- Annealed stranded circular copper conductors conforming to IEC 60228 Class-2.
- Tinned copper conductors are available as required.
- Applicable International Standard Specification: Accordance with the latest edition of IEC 60228.

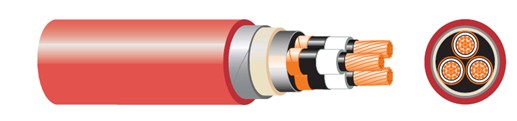

Rated Voltage (kV): (3.6/6), (6/10), (8.7/15), (12/20), (18/30), (20/35).
Cables sizes (mm2): 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300, 400, 500, 630, 800 & 1000.
Applicable cable sizes for each rated voltage shall verified based on cable construction.
Cable Construction: Cu/Al, Single or three cores with XLPE insulation, screen option, unarmored or armored.
- Cupper/Aluminum Conductor as required.
- Cross-linked polyethylene XLPE insulation.
- Lead sheath as required.
- PVC, PE or LSHF/LZHF outer sheath available on request.
Applicable International Standard Specification: IEC 60502, BS 6622 Also, SC can supply a range of alternative designs to meet more specifications & customer needs.

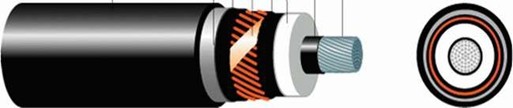

Rated Voltage (kV): 46, 66, 69, 110, 115, 132, 150, 220, 230 – 380 kV under process.
Cables sizes (mm2): 240, 300, 400, 500, 630, 800, 1000, 1200, 1600, 2000 & 2500.
Cable sizes of less than 240 mm2 shall be verified based on the project specifications.
Cable Construction: Cu/Al, XLPE, Cu Wires Screen, Lead Sheath or combined of both, PE outer sheath.
- Cupper Conductor as required.
- Aluminum Conductor up to 800 MM2. Higher sizes shall be verified upon request.
- Applicable International Standard Specification: IEC 60840, IEC 62067, any other International Standard Specification shall be verified based on the project specifications.
- Special cables shall be verified based on the project specifications.
